Description

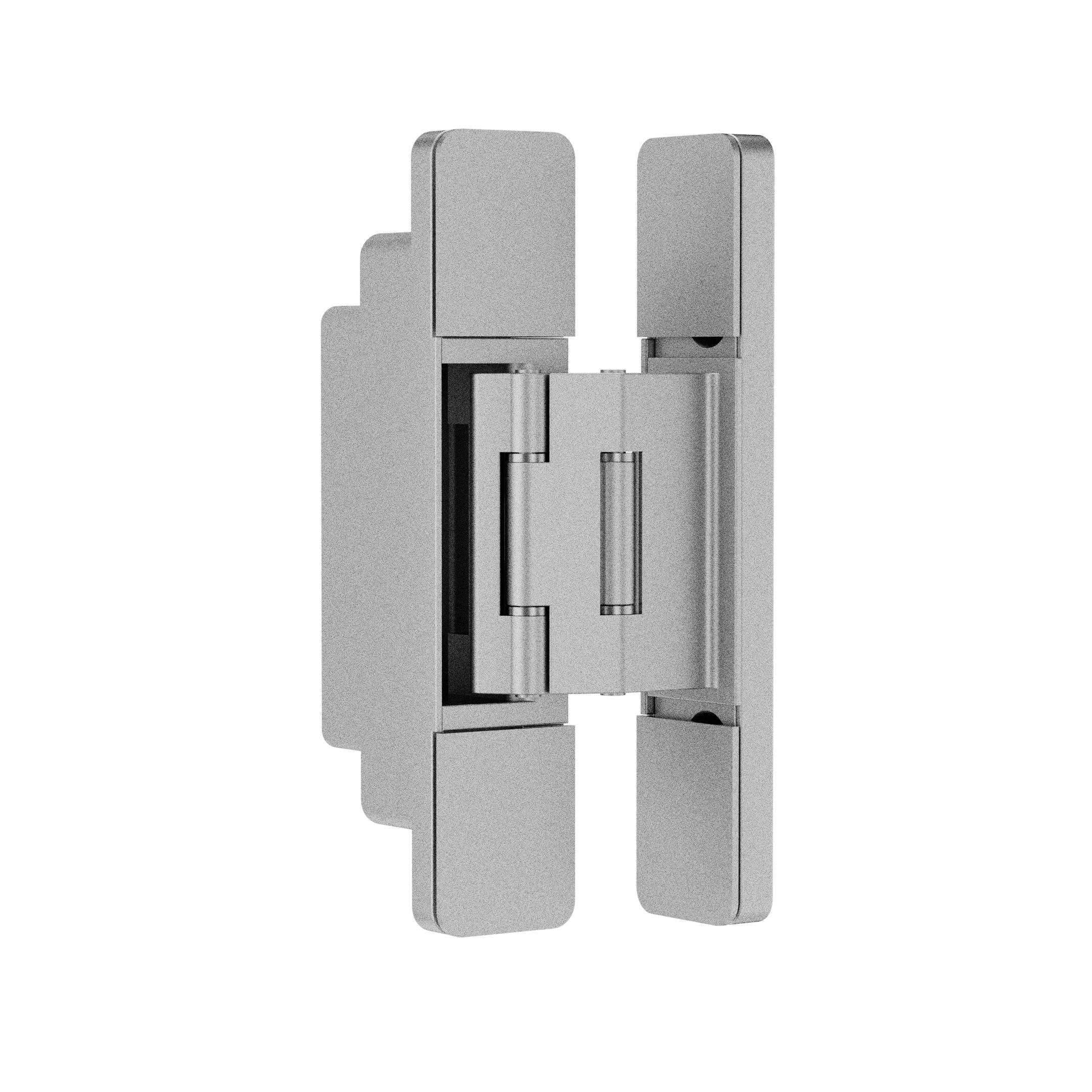

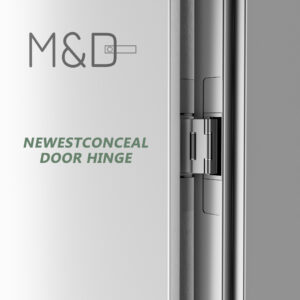

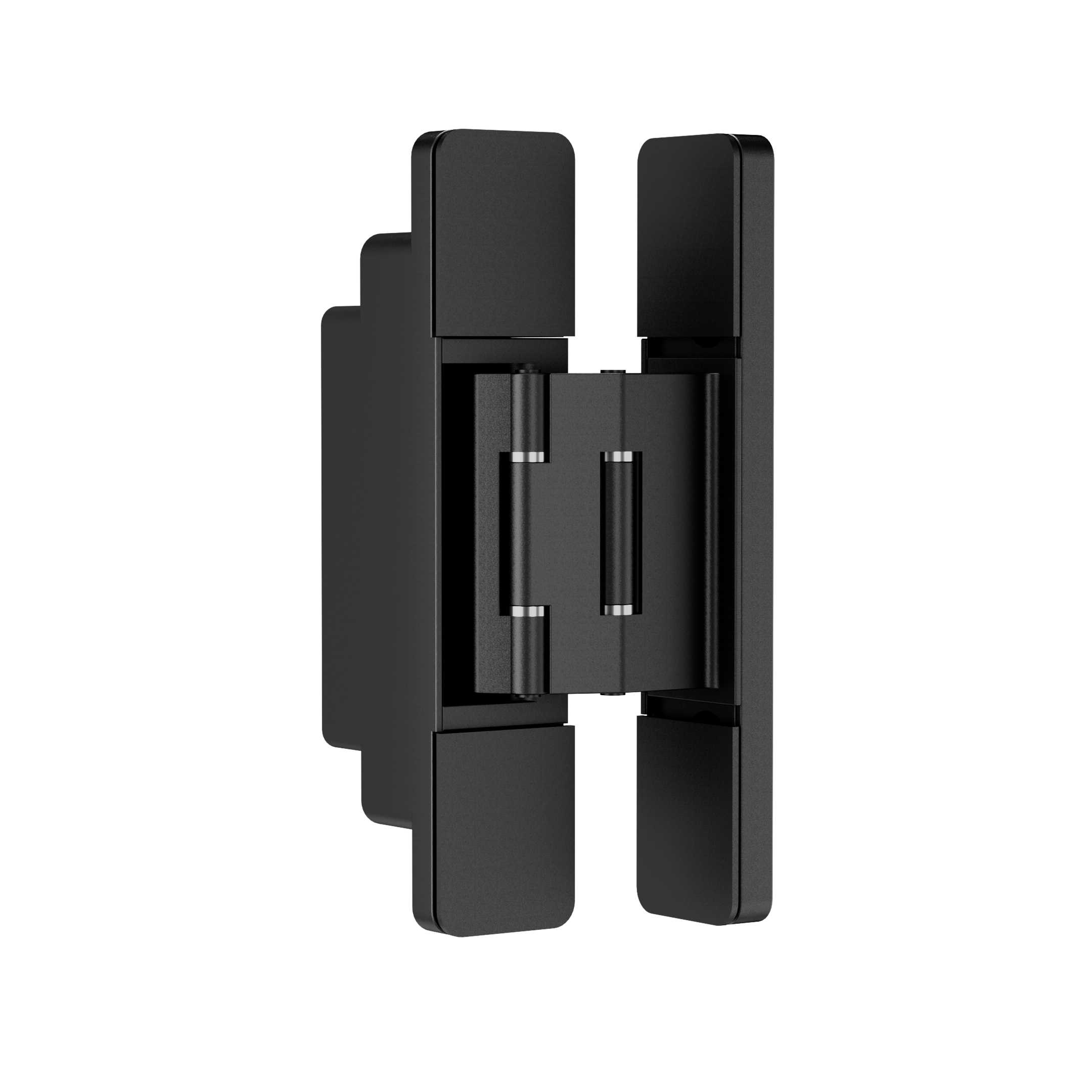

Conceal door hinge for aluminum wood door applications is developed for modern premium door systems, offering concealed installation, durable structure, and refined finish options.

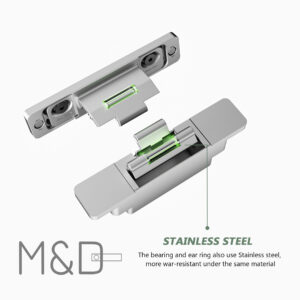

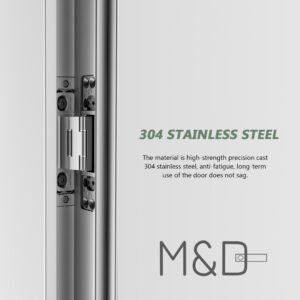

1. The material is high-strength precision cast 304 stainless steel, anti-fatigue, long-term use of the door does not sag.

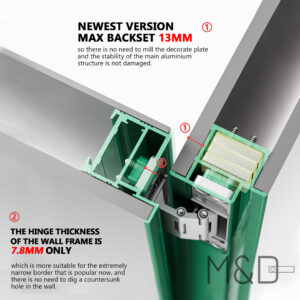

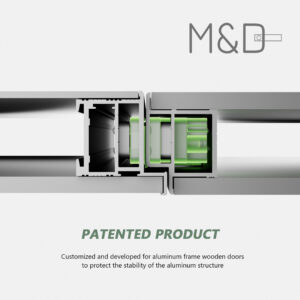

2. The maximum distance from the backset is 13mm, so there is no need to mill the decorative plate and the stability of the main aluminium structure is not damaged.
3. The hinge thickness of the wall frame is 7.8mm only, which is more suitable for the extremely narrow border that is popular now, and there is no need to dig a countersunk hole in the wall.

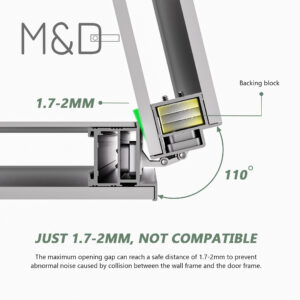

4. The maximum opening gap can reach a safe distance of 1.7-2mm to prevent abnormal noise caused by collision between the wall frame and the door frame.
Download for Detailed Opening Parameters and Images：
