New Extreme Narrow Hinge for Aluminum glass Door
/
/
/
New Extreme Narrow Hinge for Aluminum glass Door

New Extreme Narrow Hinge for Aluminum glass Door

Ultra-Narrow hinge
Product code: MND-015
Material: SS304 (Precision casting)
Application: Aluminum wooden door/Aluminum glass door.
Size: 98*31*9.5
Loading capacity: 80KGS (2PCs)
With patent

Category:

Description

1. The material is high-strength precision cast 304 stainless steel, anti-fatigue, long-term use of the door does not sag.
2.Built-in reinforcement plate for more stable use.
3. Groove design, after installation does not leak the white edge of the aluminum frame.
4. Ultra-thin design, up to 3.2mm and 9.5mm on both sides, suitable for most aluminum profiles on the market

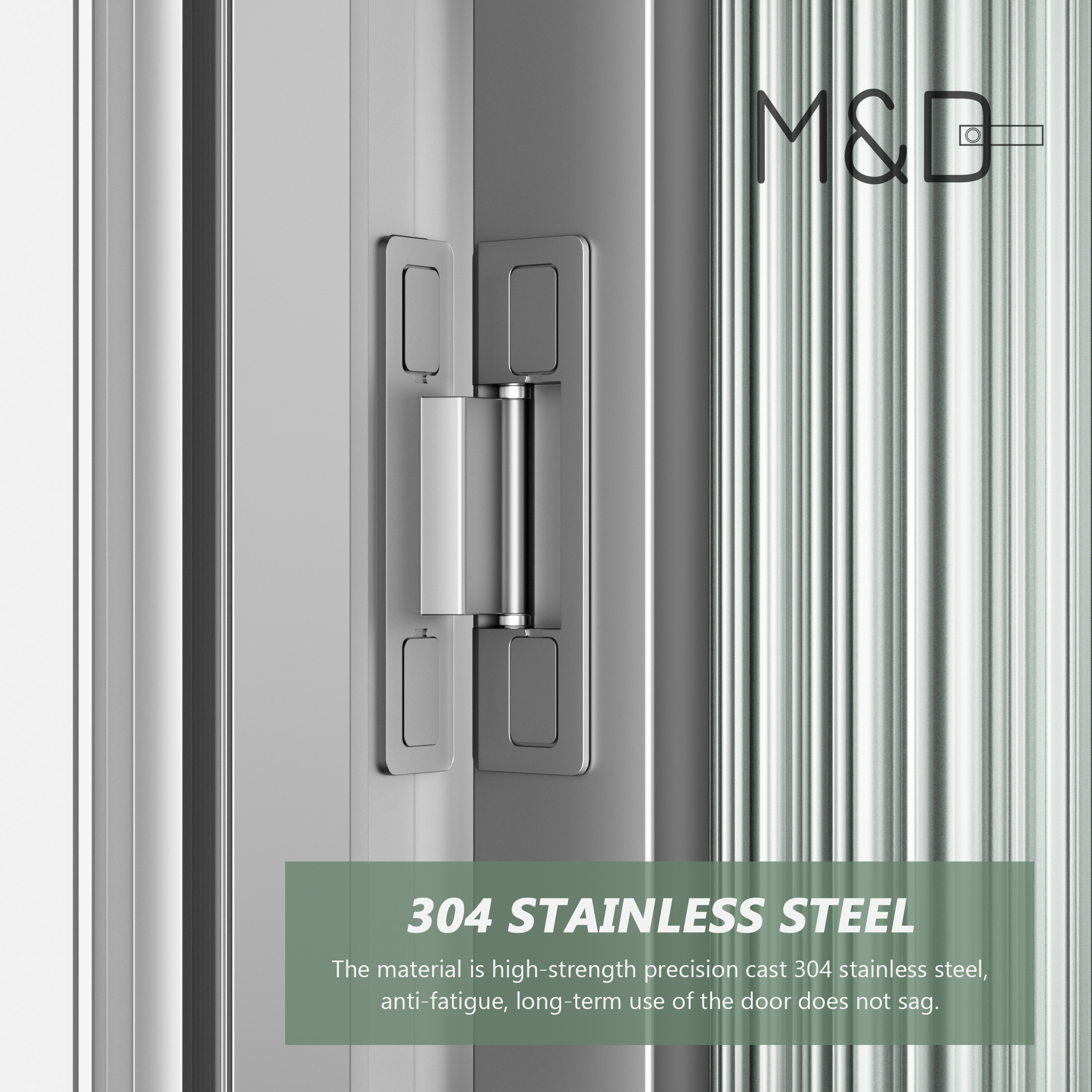

Ultra-thin hinge groove design

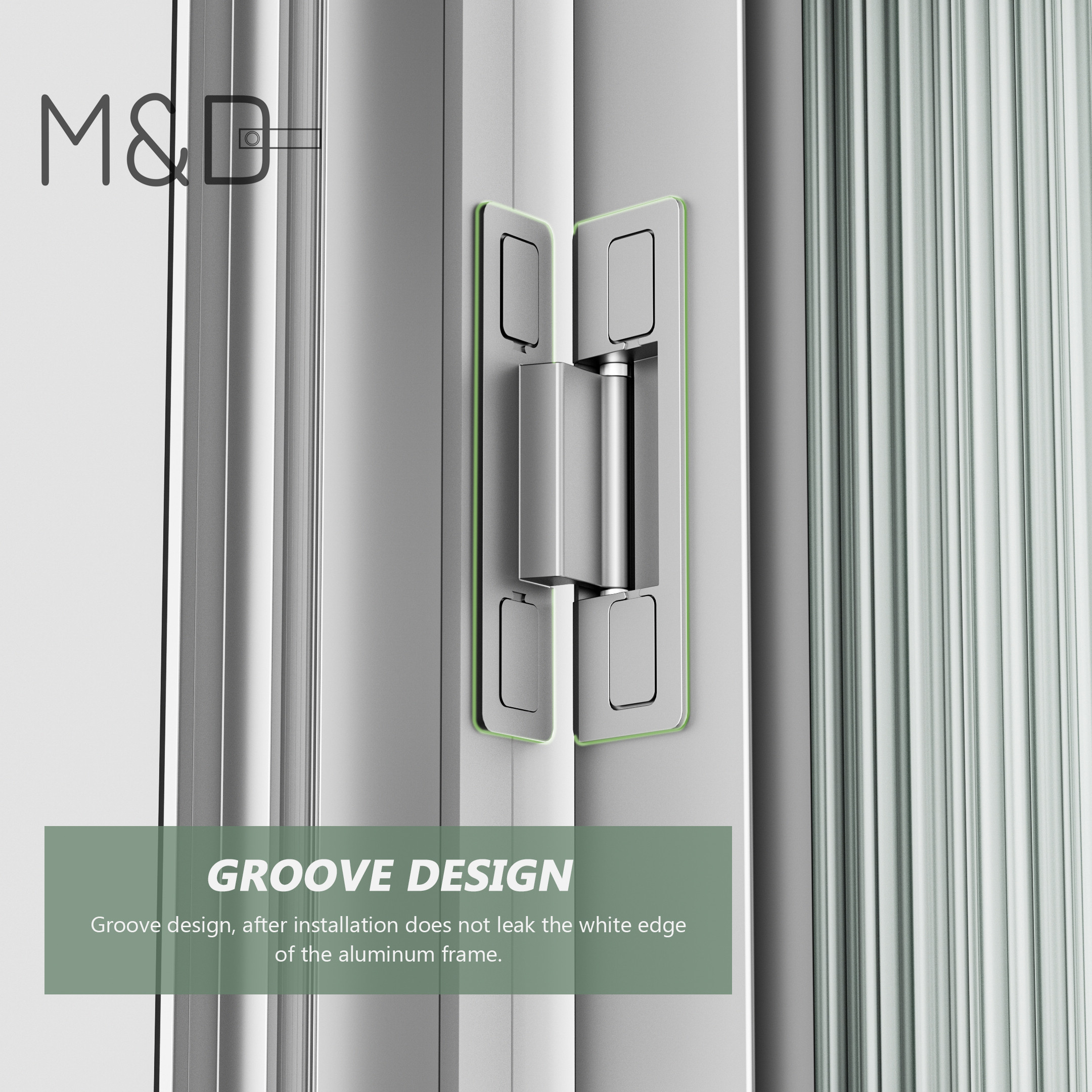

Ultra-thin hinge stainless steel

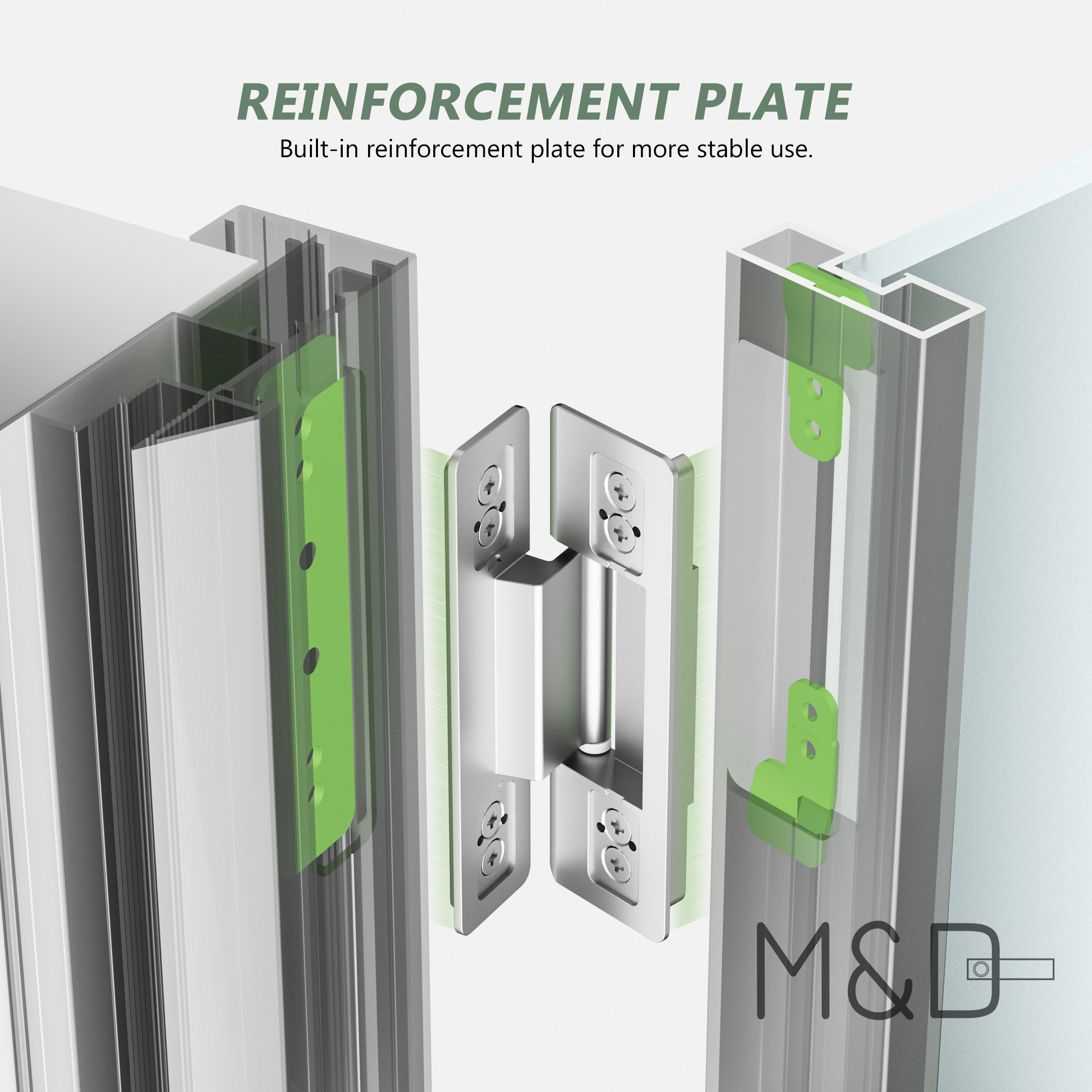

Ultra-thin hinge reinforcement plate

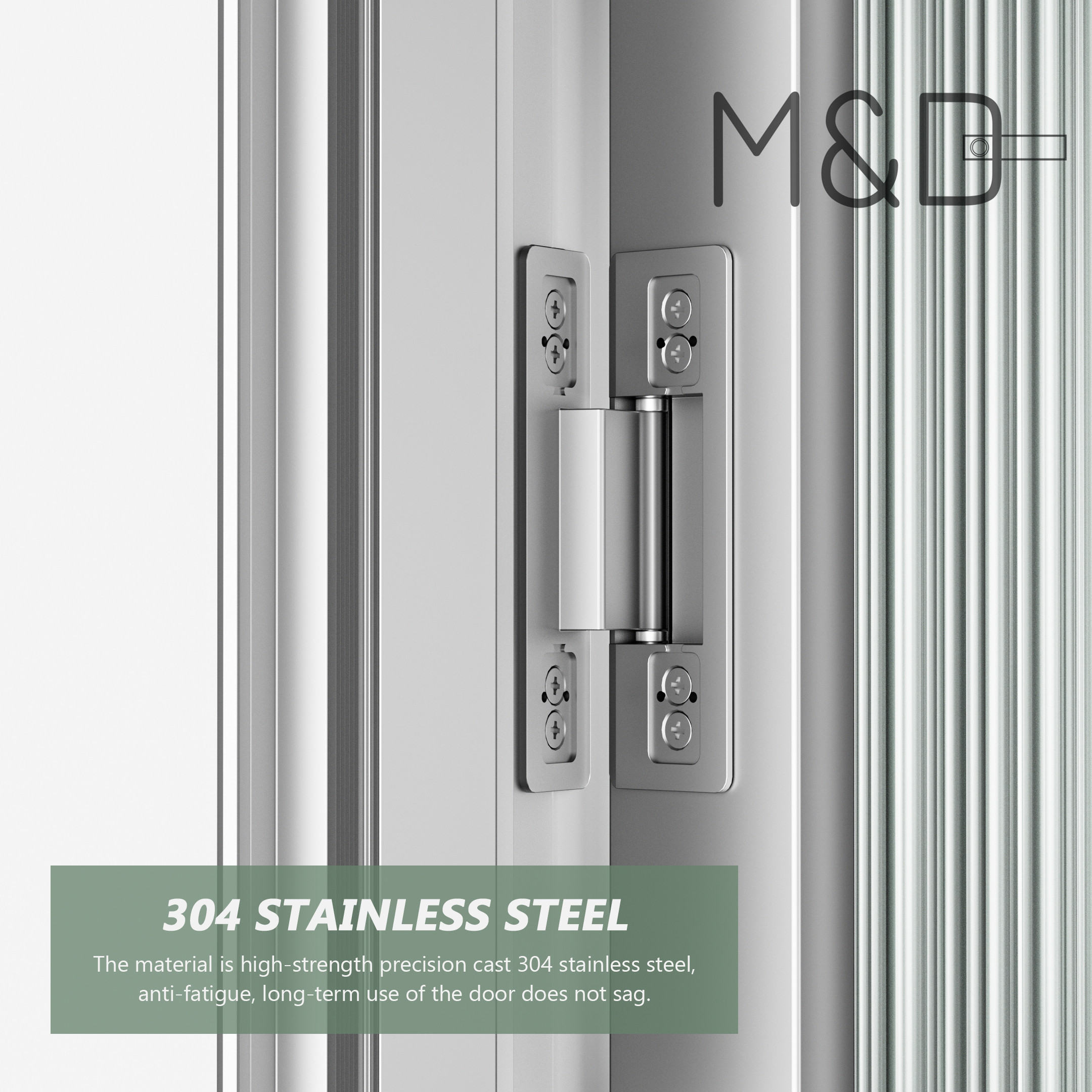

Ultra-thin hinge stainless steel detail

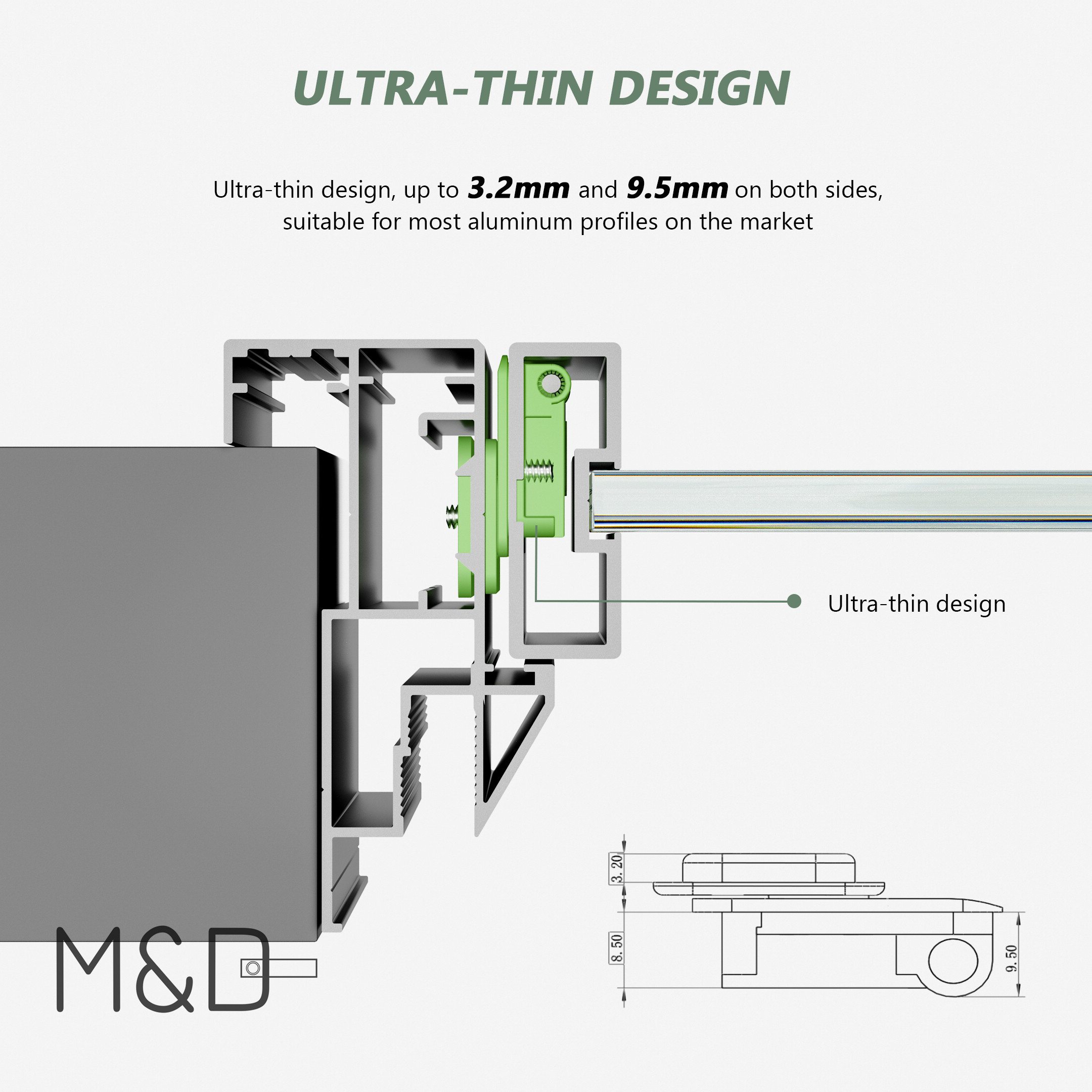

Ultra-thin hinge cross section
