Aluminum wood doors combine the warmth of a wooden door leaf with the clean structural lines of an aluminum profile. However, their narrow frame structure also creates special requirements for concealed hinges.
For aluminum wood door manufacturers, an unsuitable concealed hinge can cause excessive profile milling, difficult wall-side installation, frame scraping, abnormal noise, premature wear, and door sagging. These problems affect production efficiency, installation quality, and after-sales service.
This article explains five common hinge problems in aluminum wood door systems and how the MND concealed door hinge for aluminum wood doors is designed to solve them.
Why Standard Concealed Hinges Create Problems for Aluminum Wood Doors
Aluminum wood doors are different from conventional wooden doors. Their aluminum profiles are usually narrower, installation space is limited, and excessive milling can damage the decorative plate or weaken the main frame structure.
Common problems include:
- A small hinge backset that requires excessive milling of the aluminum profile
- A thick wall-frame hinge section that does not fit narrow minimalist frames
- Insufficient opening clearance that causes scraping and abnormal noise
- Load-bearing components that wear or deform after long-term use
- Limited adjustment after installation, increasing alignment difficulty

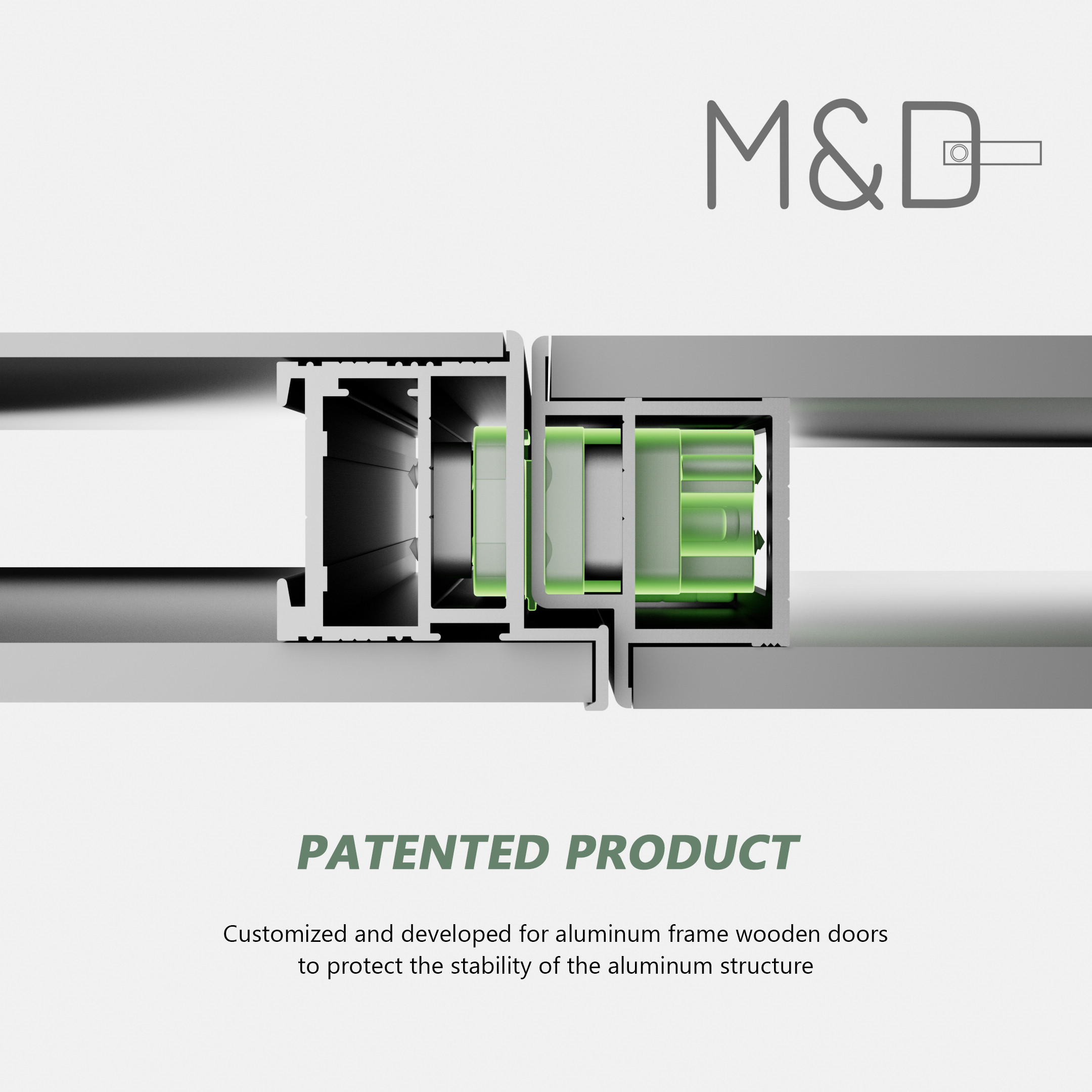

1. A Patented Structure Developed for Aluminum Frame Wooden Doors
Many concealed hinges are adapted from conventional wooden door applications. They are not specifically designed around the structure of aluminum frame wooden doors.
The MND hinge uses a patented structure developed to protect the stability of the aluminum frame. Its compact installation arrangement helps the hinge fit within the door and wall profiles without requiring unnecessary structural damage.

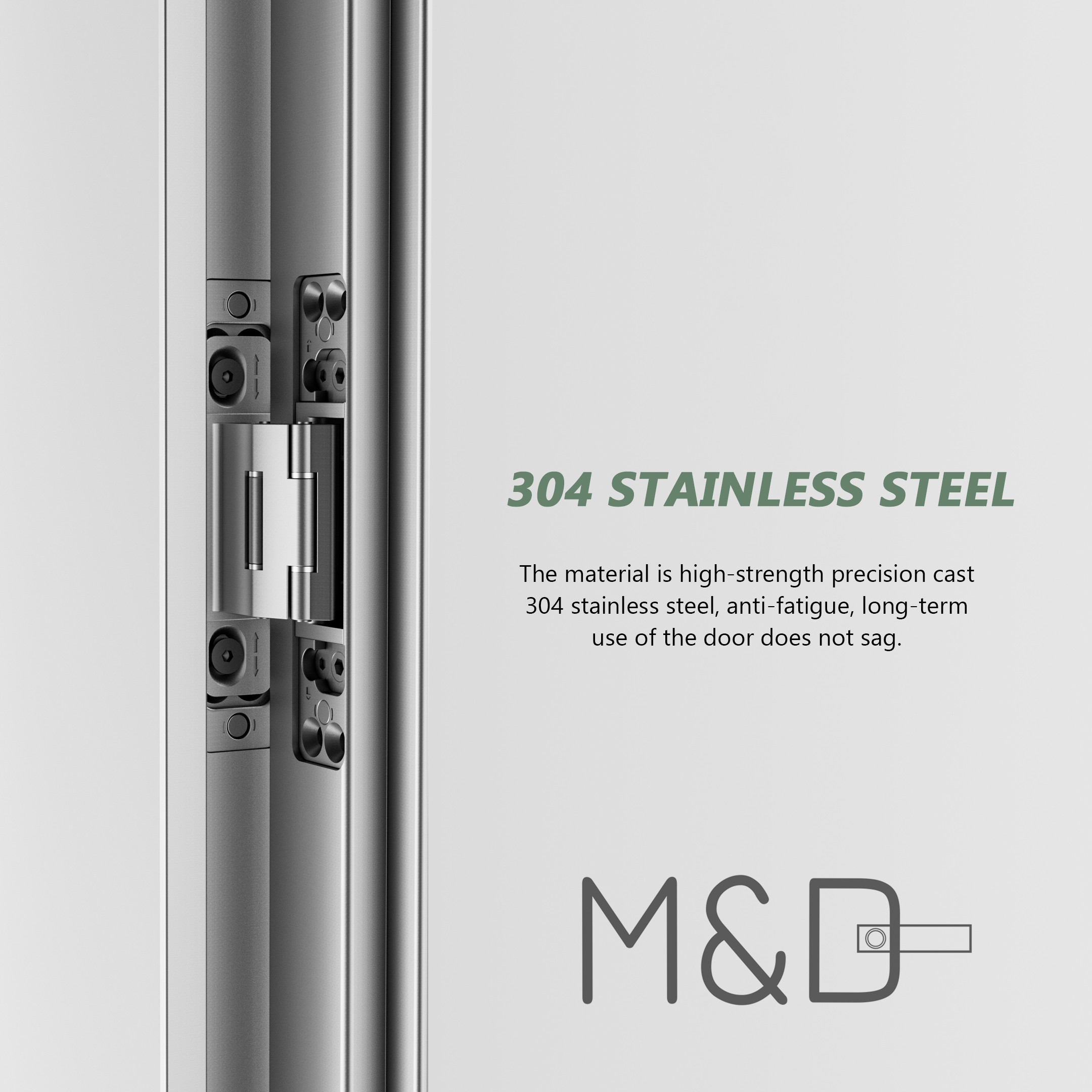

2. SS304 Load-Bearing Parts Improve Long-Term Durability
The load-bearing structure is one of the most important parts of a concealed hinge. Hinges using weaker zinc alloy, aluminum alloy, or plastic components in critical moving areas may wear faster under repeated use and heavier door loads.

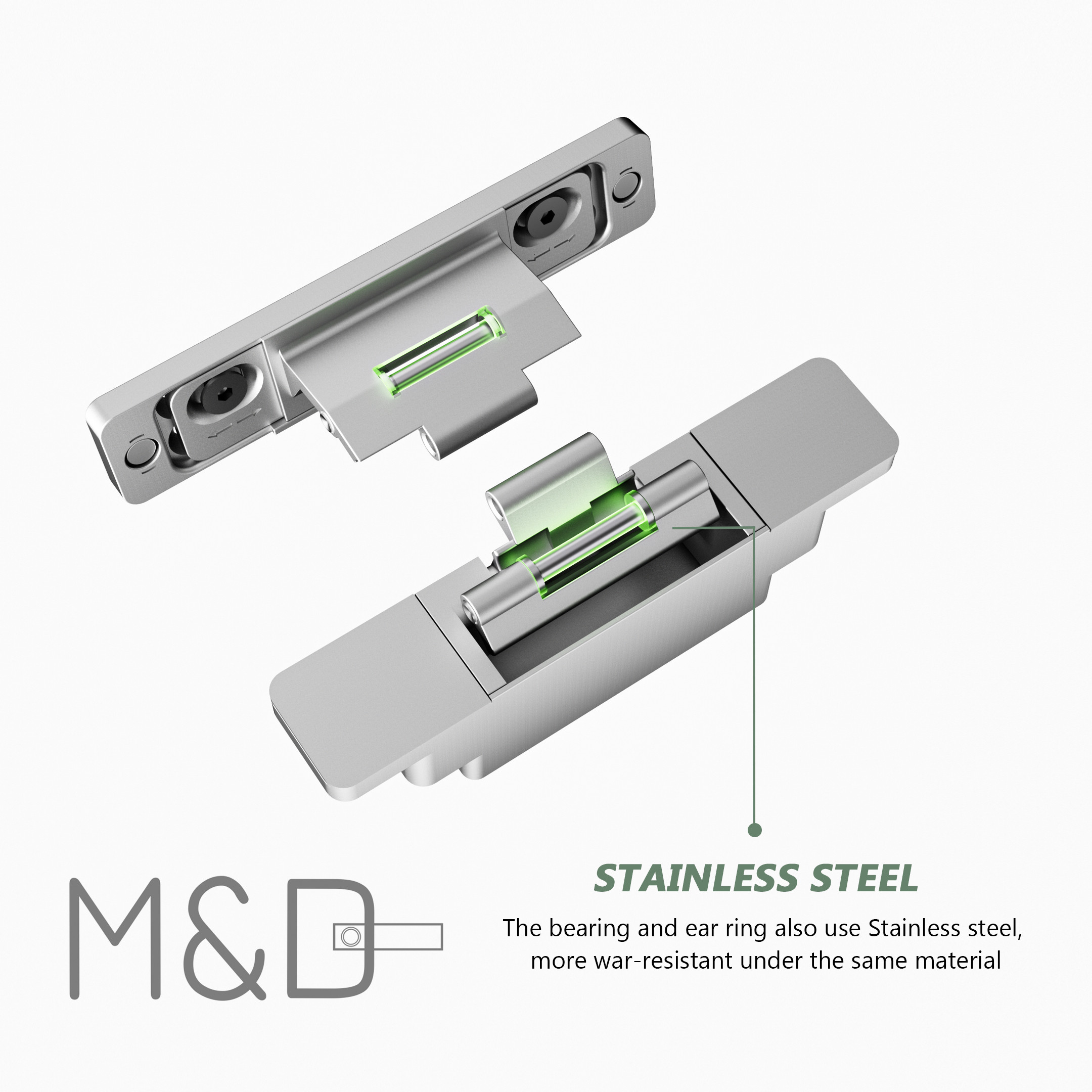

The main load-bearing structure of this hinge is made from high-strength precision-cast SS304 stainless steel. The bearing and ear ring also use stainless steel, creating a more wear-resistant connection between moving components.
This material combination helps reduce fatigue, wear, deformation, and the risk of the door sagging after long-term use.

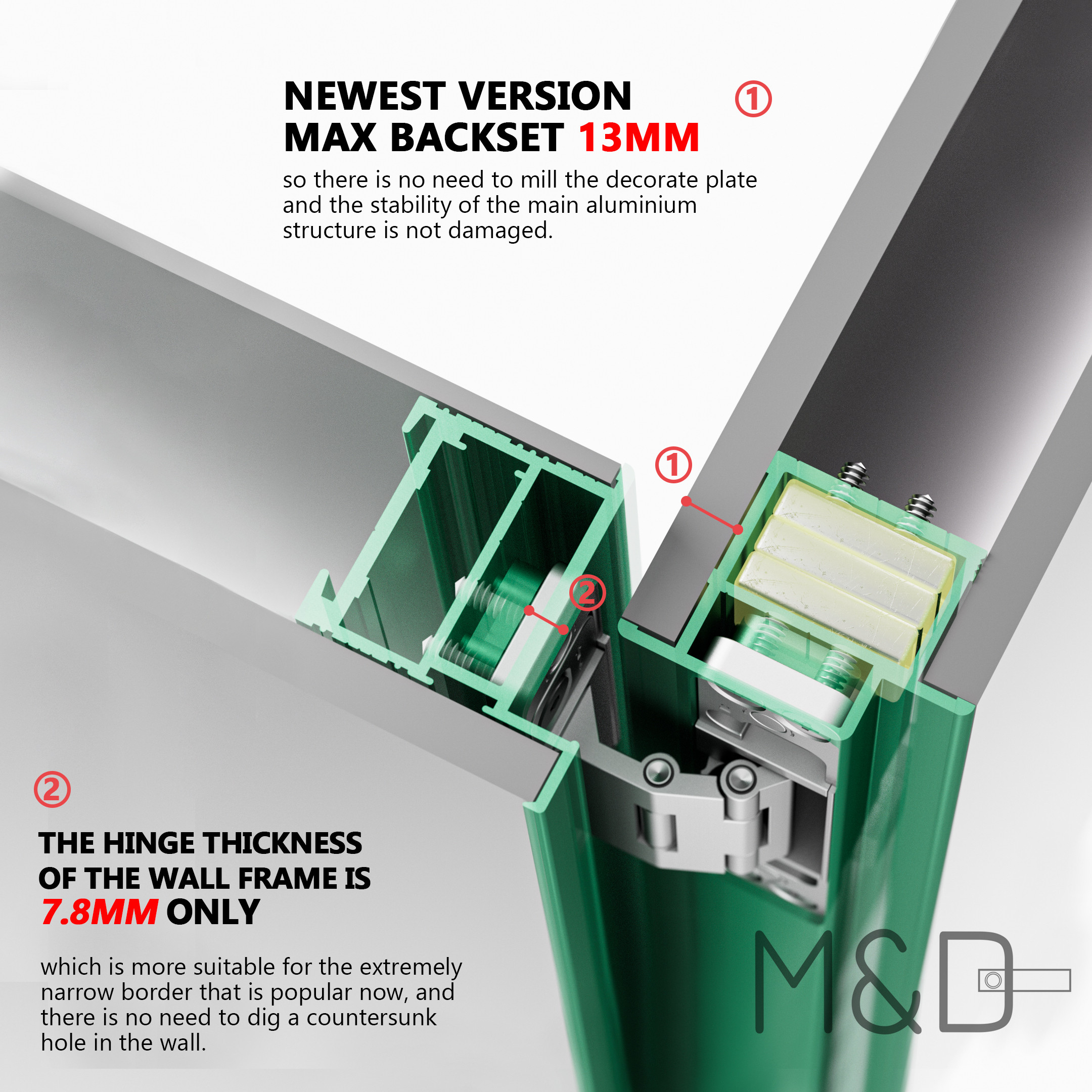

3. A 13 mm Backset and 7.8 mm Ultra-Thin Structure Protect the Frame
Many conventional concealed hinges require a backset of less than 6 mm. This may force the factory or installer to mill the decorative plate and can weaken the main aluminum structure.
The MND concealed hinge supports a maximum backset of 13 mm, reducing the need to mill through the decorative plate. At the wall-frame side, the hinge section is only 7.8 mm thick. This makes it easier to fit within narrow minimalist frames, where the available installation space may be only around 10 mm.
Together, these two structural details help protect the aluminum profile, simplify installation, and avoid creating an additional countersunk opening in the wall.

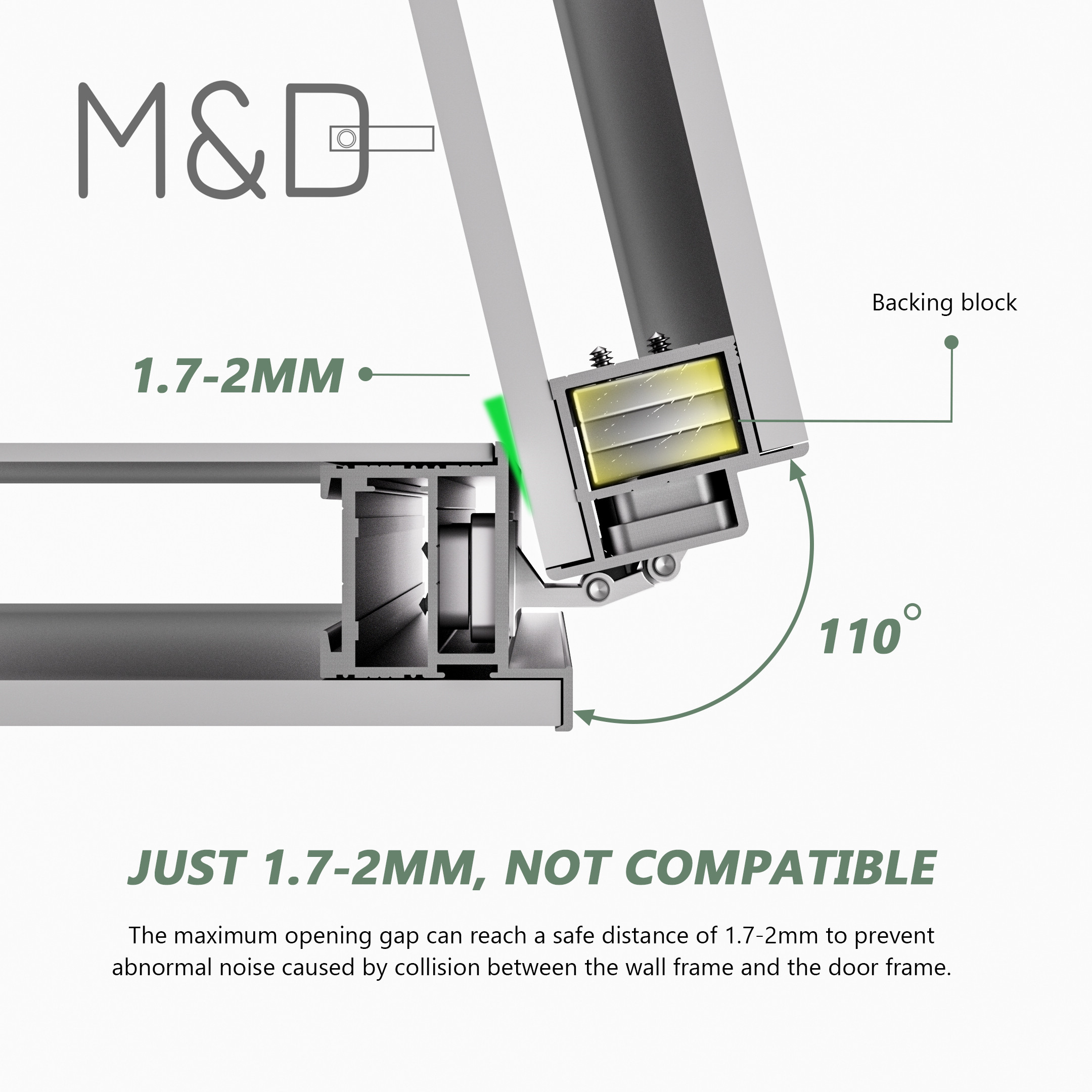

4. A 1.7–2 mm Safe Opening Clearance Reduces Scraping and Noise
Opening clearance is a frequent source of after-sales complaints. When the clearance between the door frame and wall frame is too small, the two surfaces may scrape during operation, causing noise and finish damage.
Based on a 3 mm door gap and a 13 mm backset, this hinge can maintain approximately 1.7–2 mm of opening clearance while allowing the door to open up to 110 degrees. The safer gap helps reduce collision risk, even if the door drops slightly after prolonged use.

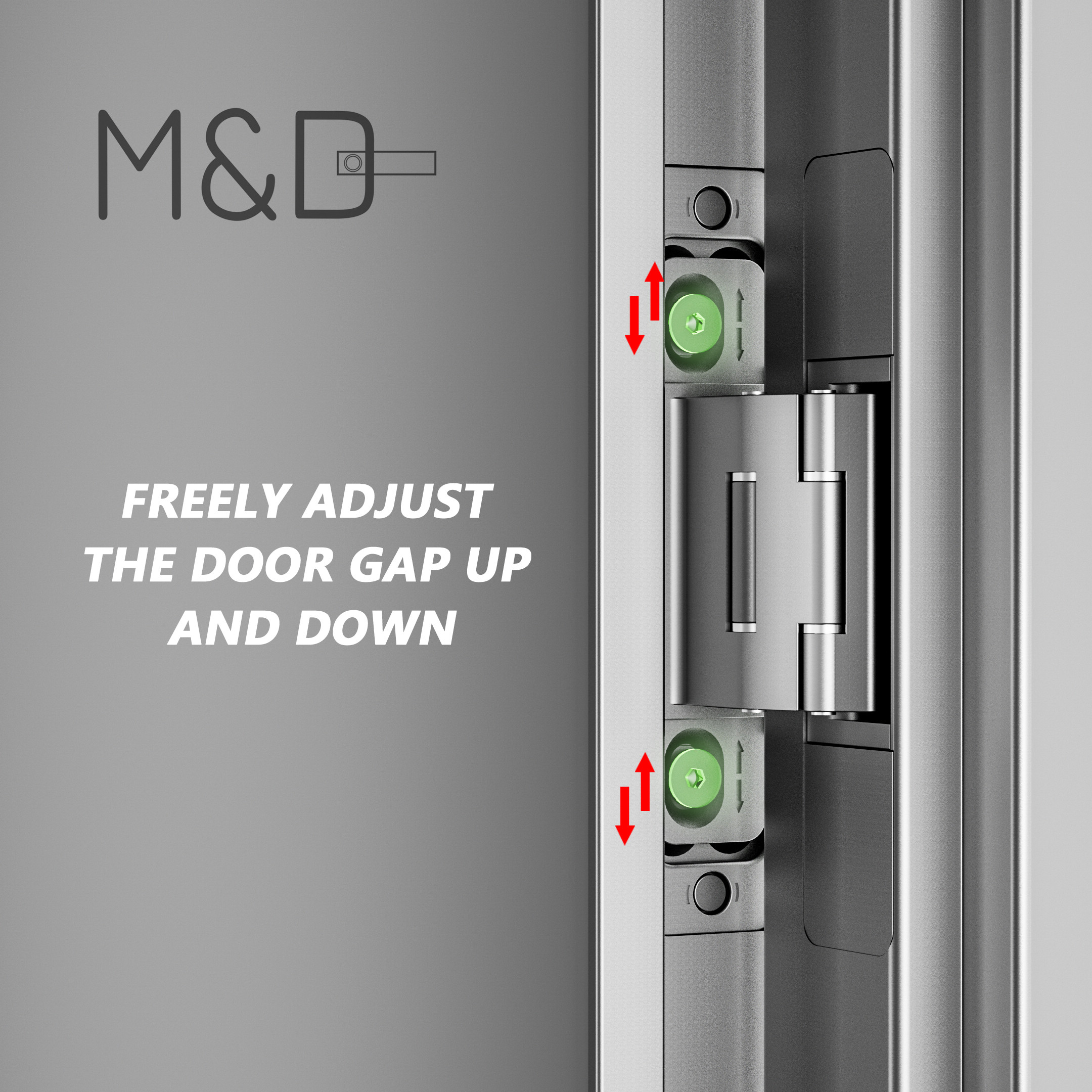

5. 3D Adjustment Simplifies Door Alignment
Even with accurate factory processing, doors may require fine adjustment after installation. A hinge with practical adjustment functions helps installers correct the door gap and align the door leaf without repeatedly removing the hinge.

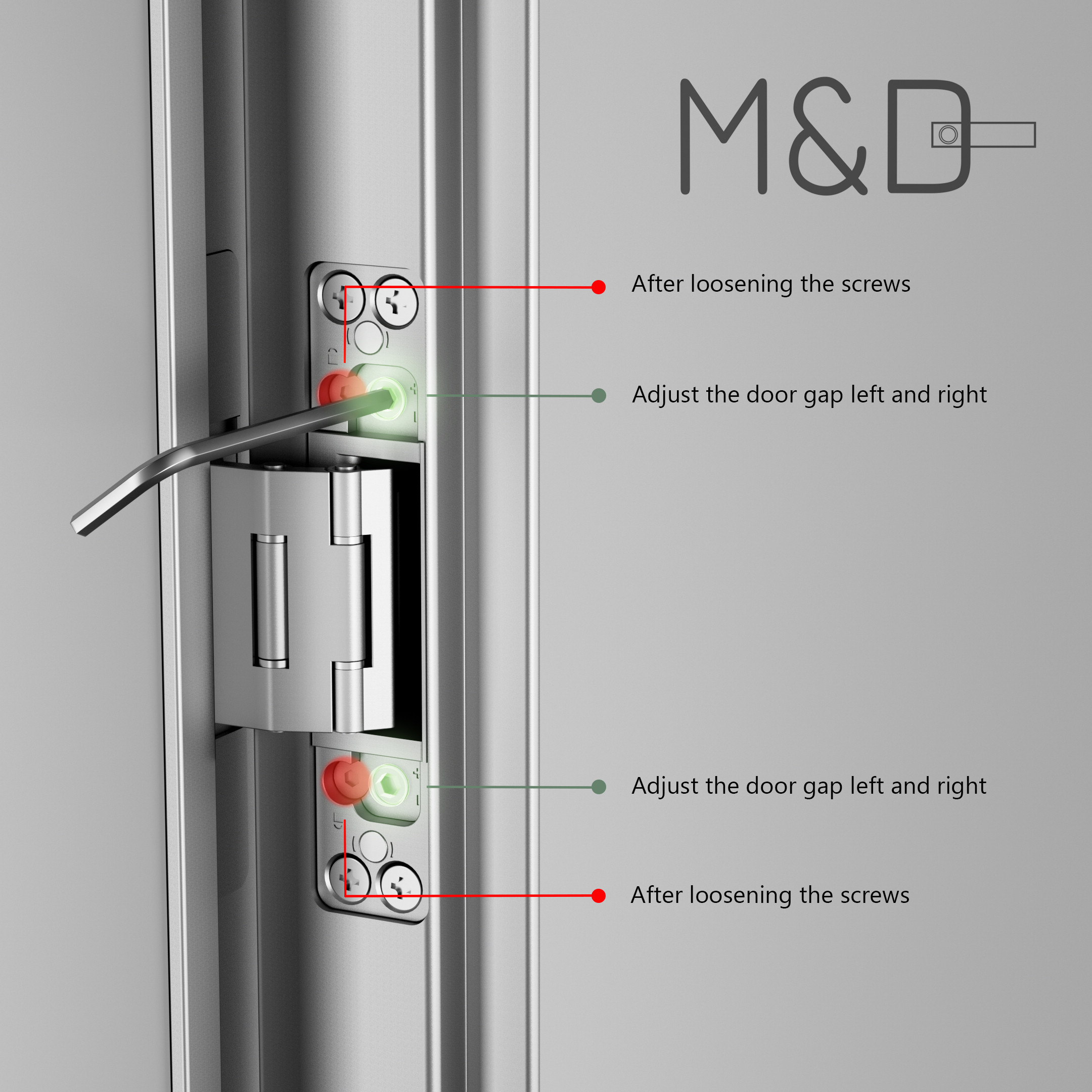

The MND concealed hinge supports left-right and up-down adjustment. After loosening the relevant fixing screws, the installer can fine-tune the door position to improve alignment and maintain an even door gap.
What Problems Does This Concealed Hinge Solve?
- Protects the aluminum profile: The 13 mm backset reduces unnecessary milling and helps preserve frame stability.
- Fits narrow minimalist frames: The 7.8 mm wall-frame thickness works within limited installation space.
- Improves long-term durability: Precision-cast SS304 load-bearing parts and stainless steel moving components improve wear resistance.
- Reduces scraping and abnormal noise: A 1.7–2 mm opening clearance provides better compatibility during long-term use.
- Simplifies alignment: 3D adjustment allows installers to fine-tune the door position after installation.
- Maintains a clean appearance: The concealed design supports modern minimalist aluminum wood door systems.
Key Product Specifications
- Product code: MND-014
- Material: Precision-cast SS304 stainless steel
- Application: Wooden doors with aluminum profiles
- Dimension: 122.8 × 24.7 × 7.8 mm
- Maximum opening degree: 110 degrees
- Loading capacity: 80 kg with two hinges
- Adjustment: 3D adjustable
- Design: Patented concealed hinge structure
Who Should Consider This Hinge Solution?
This hinge is suitable for aluminum wood door manufacturers, minimalist door factories, architectural hardware distributors, and project buyers who need a stable concealed hinge for narrow frame systems.
It is particularly useful when conventional concealed hinges create problems with profile milling, limited wall-side space, opening clearance, installation adjustment, or long-term durability.
Frequently Asked Questions
Why are normal concealed hinges difficult to install on aluminum wood doors?
Many normal concealed hinges require a small backset or a thick wall-frame installation space. This can force installers to mill the aluminum profile or cut into the wall, affecting installation efficiency and structural stability.
Why is a 13 mm backset useful?
A 13 mm backset helps avoid milling through the decorative plate and protects the stability of the main aluminum profile.
Why is the 7.8 mm wall-frame hinge thickness important?
Minimalist aluminum frames often provide limited installation space. A 7.8 mm hinge section fits narrow frame systems more easily and reduces the need for wall cutting.
How does a 1.7–2 mm opening clearance improve the door system?
The safer opening clearance helps prevent scraping and collision between the door frame and wall frame, reducing noise and finish damage.
Is this concealed hinge adjustable?
Yes. The hinge supports 3D adjustment, including left-right and up-down fine-tuning after installation.
Final Thought
A concealed hinge may be visually hidden, but its performance directly influences the quality of the entire aluminum wood door system. The right hinge can protect the aluminum profile, simplify installation, reduce after-sales problems, and improve long-term door movement.
Explore the MND concealed door hinge for aluminum wood doors, browse our hinge solutions, or review the minimalist aluminum wood door application.
Door Hardware Solution
Looking for a Concealed Hinge for Your Aluminum Wood Door Program?
Share your door structure, profile dimensions, door weight, and target market with MND Hardware. We can recommend a suitable concealed hinge solution and provide product details, installation information, and project support.
